Converting Your Pool Light to LED: What You Need to Know

Switching from an incandescent pool light to LED: what gets replaced, what stays, conversion kits, and when you need an electrician.


Convertir sa lumière de piscine en DEL : ce qu'il faut savoir

The short answer. In most cases, yes, you can convert without replacing the niche or draining the pool. A PAR56 incandescent light can be replaced with a PAR56 LED that fits into the same niche and connects to the same conduit. What often changes is the voltage: many older installations are 120 V, while modern LEDs operate at 12 V and require a transformer.

It is this voltage issue, not the housing, that determines the extent of the work.

Why convert

Energy consumption. An incandescent pool light draws several hundred watts. An equivalent LED draws only a fraction of that, providing comparable or superior illumination.

Lifespan. An incandescent pool bulb needs regular replacement, and each replacement requires removing the light from its niche. An LED lasts much longer, which completely changes the maintenance approach.

Color. This is the reason that truly convinces people. A colored LED transforms the atmosphere of a backyard, with color-changing programs that no incandescent light can offer.

Heat. An incandescent light gets extremely hot and must never operate out of water. An LED runs cool, which reduces the risk of damage to the lens and seal.

The question that decides everything: 12 V or 120 V?

Check your current installation before doing anything else.

If you already have a transformer, usually a box mounted near the equipment or on the shed wall, your system is 12 V. The conversion is simple: you replace the light with a compatible 12 V LED.

If you do not have a transformer, your light is probably powered directly by 120 V. Two options are available:

  • Install an LED designed for 120 V, if your housing allows it.

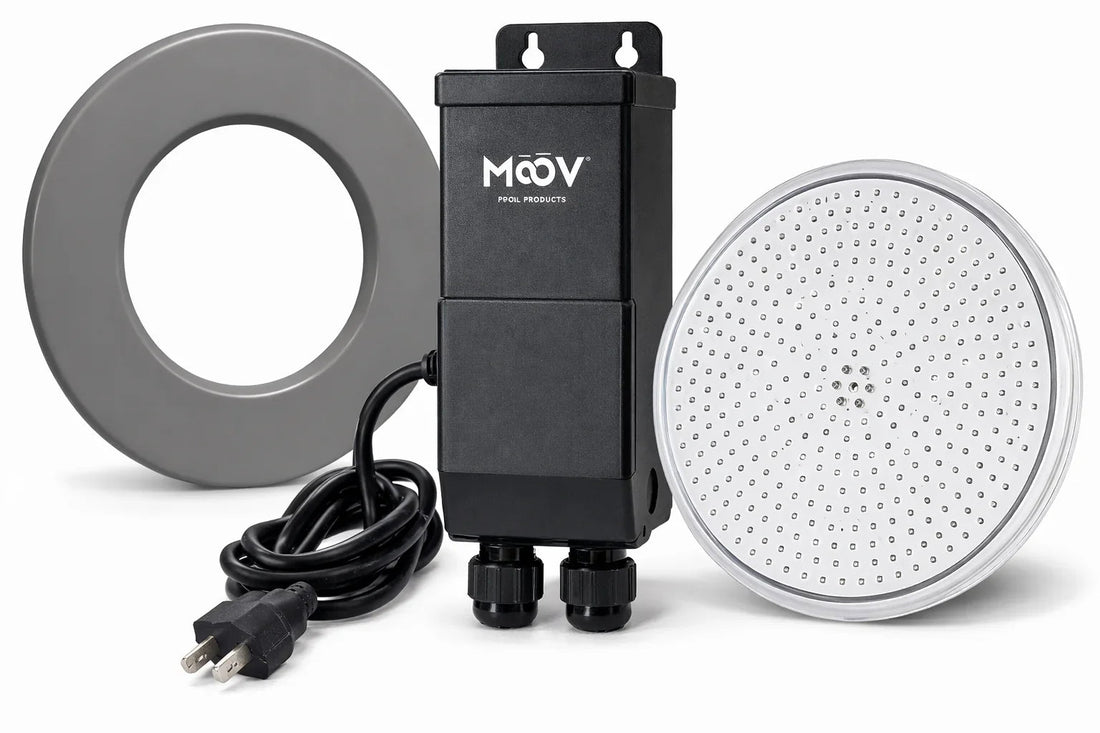

  • Add a transformer and switch to 12 V. This is what conversion kits do, which include the LED light and the matching transformer.

If in doubt, do not guess. Mixing the two voltages will destroy the light on the first power-up, and connecting a transformer involves permanent wiring. In Quebec, electrical work is regulated: have this part done by an electrician.

What is replaced, what is kept

You almost always keep: the niche built into the wall, the conduit running from the niche to the junction box, and generally the junction box itself.

You replace: the entire light fixture, or the bulb and lens depending on the model, and sometimes the cable if it is integrated into the light fixture.

You may add: a transformer, if you are switching from 120 V to 12 V, and a faceplate adapter if the diameter of the new light fixture differs from the old one. This type of PAR56 adapter solves most aesthetic discrepancies.

The formats to know

PAR56. This is the classic large format for inground pools, used by older incandescent lights. Most replacement LEDs adopt this format precisely to fit into existing niches, in white as well as in color.

Small niche-less formats. Some recent LEDs screw directly into a threaded return fitting, without a niche at all. This is the simplest solution for adding a light source where there wasn't one before, or for lighting an above-ground pool.

Proprietary models. Some brands use their own format. There are dedicated replacement LEDs, such as those designed for AquaLamp or Jacuzzi Q500 fixtures. Check the exact model before ordering.

Do you need to drain the pool?

No, in the vast majority of cases.

An inground pool light is mounted in its niche with enough coiled cable behind it to allow it to be removed from the water and placed on the edge of the pool without lowering the water level. It is designed this way precisely for maintenance.

The detailed procedure can be found in how to change a pool light.

You only need to lower the water level if the cable is too short, if it was replaced with a shorter cable during a previous repair, or if the niche itself needs to be replaced.

What you need to check before ordering

The format and diameter of the current light fixture. Remove it and measure, or photograph the label.

The voltage. 12 V or 120 V. This is the critical point.

The required cable length. From the niche to the junction box, with some slack. Light fixtures are sold with different lengths, generally 50 or 100 feet, and a cable that is too short will stop you during installation.

White or color. This choice deserves some thought, and we detail it in white or colored pool light.

Send us a photo of the light fixture removed from its niche and its label, and we will tell you exactly what to order.

View all our pool lights | Above-ground pool lights

Safety, in three rules

Turn off the circuit breaker before touching anything. Not the switch, the circuit breaker.

Never turn on a light fixture out of water. Water cools the light fixture. An incandescent light turned on in the open air will burn out in a few seconds, and even an LED can suffer.

Permanent wiring is the job of an electrician. Replacing a light fixture in its niche is a maintenance task. Installing a transformer, modifying a junction box, or any work on the power supply circuit is the job of a professional, and it is regulated in Quebec.

Frequently asked questions

Can I put an LED bulb in my old housing?
Sometimes, but it is rarely the best approach. A complete LED light fixture is designed for the sealing and heat dissipation of its own light source. An LED bulb in a housing designed for incandescent lights often produces disappointing results.

How long does an LED pool light last?
Much longer than an incandescent light, generally several seasons without intervention. What almost always kills it prematurely is water infiltration through a defective seal.

Do I need to replace my transformer at the same time?
If you already have one and it is in good condition, usually no. Check that it has sufficient capacity for the new light fixture.

Is the conversion worth it if my light still works?
The calculation depends on the number of hours you illuminate. If you turn it on every evening from June to September, the difference in consumption is significant. If you turn it on three times a summer, the real reason to convert is the color, not the savings.

Can I add a second light?
Yes, and the small models that screw into a return fitting make it much simpler than before, without masonry work.
