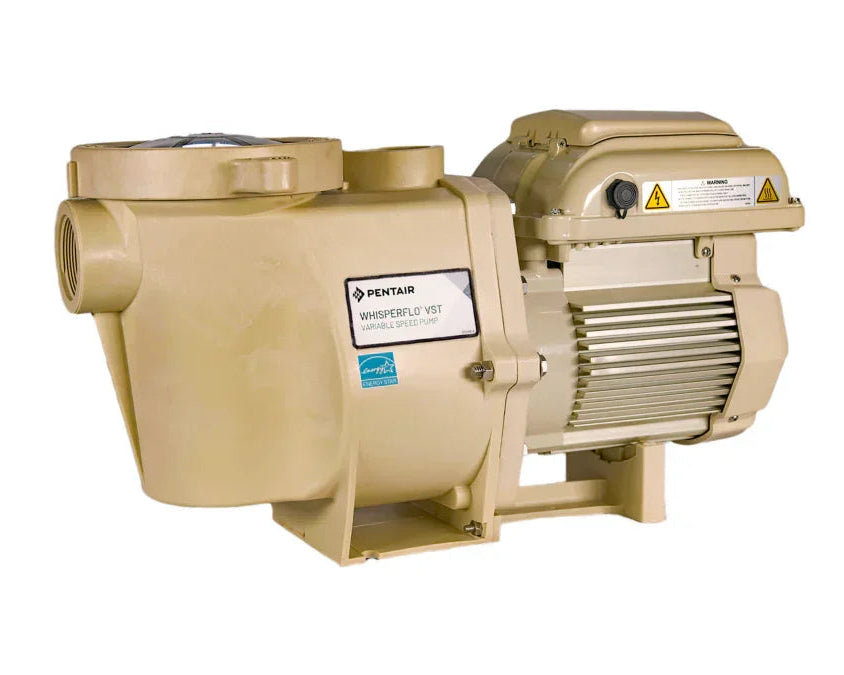

In short: Pentair WhisperFlo VST variable-speed pump, 2.6 THP / 1.64 HHP, from 450 to 3450 rpm. 115 or 208-230 V single-phase power with automatic adaptation, without rewiring. ENERGY STAR certified in the United States and Canada, 8.4 WEF. Pentair part number 011533.
Silence on a 2-inch plumbing system
The WhisperFlo is the pump Pentair built around noise and hydraulic performance. The VST version adds the variable-speed motor: at reduced speed, a pump makes very little noise, because the noise of a pump comes first from the speed of the water in the volute and in the pipes.
For an in-ground pool plumbed in 2 inches, with a large enough filter and a heater, it is a more powerful choice than the SuperFlo VST, without moving to the 3 HP class.
It is programmed on its integrated digital display: three stored speeds, 24-hour clock, and manual override function.
Official Pentair specifications
| Part number |
011533 |
| Power |
2.6 THP · 1.64 HHP |
| Speed range |
450 to 3450 rpm |
| Power supply |
115 / 208-230 V, single-phase, 50/60 Hz, automatic adaptation |
| Amperage |
13.9 A at 115 V · 11.1 to 10.1 A at 208-230 V |
| Plumbing |
2 in |
| Efficiency (WEF) |
8.4 — ENERGY STAR certified in the United States and Canada |
| Pentair distinction |
Eco Select |
| Control |
Integrated digital display, 24-hour clock, 3 programmable speeds |
| Automation |
RS-485 optional (Pentair kit 356324Z) and digital inputs |
| Pentair warranty |
2 years parts and labor on professional installation |
Source: WhisperFlo VST data sheet, WhisperFlo VS / VST installation guide published by Pentair, and ENERGY STAR registry for model 011533.
Precision on power
This pump is often advertised as a "2 HP". Pentair does not publish this figure for the 011533: the official data sheet indicates 2.6 THP and 1.64 HHP. THP is the total power, i.e., the nominal power multiplied by the service factor, and HHP is the hydraulic power. To compare two pumps, the WEF is the useful measure, here 8.4.
No Wi-Fi on this model
The WhisperFlo VST does not have Wi-Fi or Bluetooth and is not controlled by the Pentair Pool app. It is programmed on its display and can be connected to a Pentair automation system by the RS-485 kit 356324Z, sold separately.
Frequently asked questions
WhisperFlo VST or SuperFlo VST?
The WhisperFlo VST is more powerful (2.6 THP versus 2.2 THP) and designed for a 2-inch plumbing system. The SuperFlo VST accepts 1.5 as well as 2 inches and shows a higher WEF at 230 V. The choice is based on the flow required by your filter and accessories, not on the power rating.
Is it eligible for LogisVert?
It is ENERGY STAR certified in Canada, which is the main condition of the assistance programs for replacing a single-speed pump. The terms are under Hydro-Québec and may be revised: validate the current conditions before purchase.
Do I need to change the electrical circuit?
Not necessarily. The pump accepts 115 V as well as 208-230 V and adapts automatically without rewiring the motor. Have the circuit amperage validated by an electrician.
Installation on the North Shore
Piscines Geyser sells, installs, and maintains Pentair pumps in Blainville and the Laurentians. The 2-year parts and labor warranty applies to professional installation.
