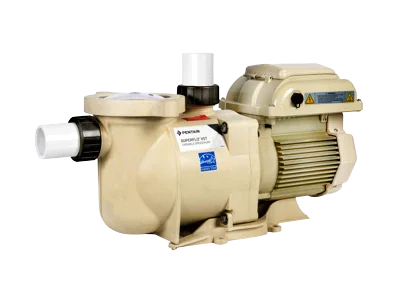

In brief: Pentair SuperFlo VST variable-speed pump, 1.5 rated HP / 2.2 THP, from 450 to 3450 RPM. 115-230 V single-phase power supply with auto-sensing. ENERGY STAR certified in the US and Canada (WEF 9.0 at 230 V). Pentair part number 342002, almond color.
Switching to variable speed without rewiring
Many owners hesitate to replace their pump because they fear having to redo the electrical circuit. The SuperFlo VST solves this exact problem: it accepts both 115 V and 230 V and automatically adapts to the existing voltage, without motor rewiring.

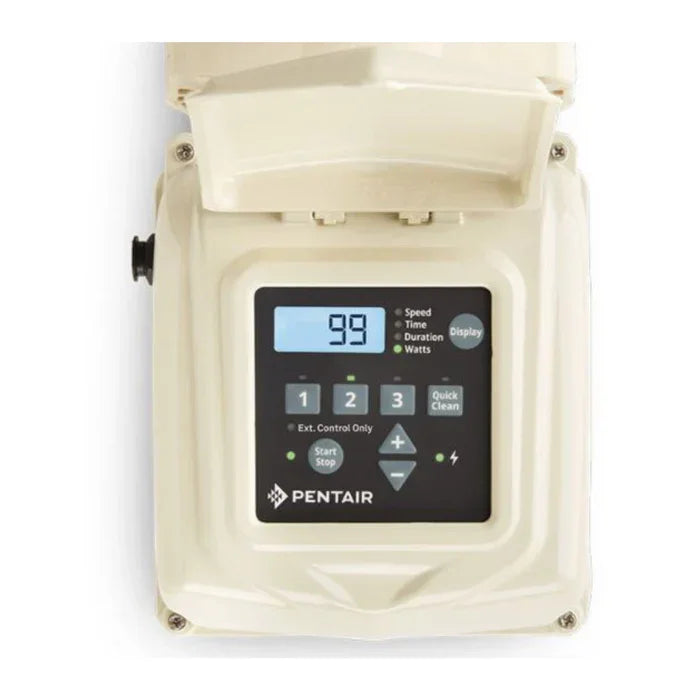

It is programmed directly via the keypad, without an app or automation system: three preset speeds, a 24-hour real-time clock, and a Quick Clean function for occasional needs.
It is the simplest replacement model for a single-speed pump on a standard residential inground pool.
Official Pentair specifications
| Part number |
342002 |
| Power |
1.5 rated HP · 2.2 THP · 1.08 HHP |
| Speed range |
450 to 3450 RPM |
| Power supply |
115-230 V, single-phase, 50/60 Hz, auto-sensing |
| Amperage |
13.6 A at 115 V · 8.2 to 7.1 A at 230 V |
| Max flow rate |
Approximately 110 GPM at 3450 RPM |
| Connections |
1.5 in and 2 in unions |
| Service factor |
1.0 |
| Weight |
53 lbs |
| Dimensions |
28.38 x 12.63 x 15.63 in |
| Efficiency (WEF) |
9.0 at 230 V · 7.3 at 115 V — ENERGY STAR certified |
| Control |
Integrated keypad, 24-hr clock, 3 programmable speeds, Quick Clean |
| Automation |
Optional RS-485 (Pentair kit 356324Z) |
| Pentair warranty |
2-year parts and labor on professional installation |
Source: Pentair product page and SKU 342002 data sheet, SuperFlo VST / SuperFlo VS / SuperMax VS installation guide, and ENERGY STAR registry.
No Wi-Fi on this model
The SuperFlo VST features neither Wi-Fi nor Bluetooth and cannot be controlled via the Pentair Pool app. It is programmed via the keypad. It can be connected to a Pentair automation system using the 356324Z RS-485 kit, sold separately. If phone control is a requirement, you should look at the IntelliFlo3 VSF.
Frequently Asked Questions
1.5 HP or 2.2 THP, which is the right number?
Both are correct and refer to two different measurements. Pentair publishes 1.5 HP as the rated power and 2.2 THP as the total power, which is the rated power multiplied by the motor's service factor. The figure to use when comparing two pumps is the WEF, here 9.0 at 230 V.
Is it eligible for LogisVert?
It is ENERGY STAR certified in the US and Canada, which is the primary condition for pump replacement rebate programs. The terms are determined by Hydro-Québec and may change: verify the current conditions before purchasing.
Can I plug it into my current 115 V circuit?
Yes. It accepts both 115 V and 230 V and adapts automatically. Its efficiency is, however, higher at 230 V (WEF 9.0 vs. 7.3).
What is the difference from the SuperMax VS?
Both pumps share the same installation guide and speed range. The SuperMax VS is sold under the Sta-Rite brand and shows 2.2 THP / 1.001 HHP with a WEF of 8.6. The SuperFlo VST carries the Pentair brand and shows a WEF of 9.0 at 230 V.
Installation on the North Shore
Piscines Geyser sells, installs, and maintains Pentair pumps in Blainville and the Laurentians. The 2-year parts and labor warranty applies to professional installation.
