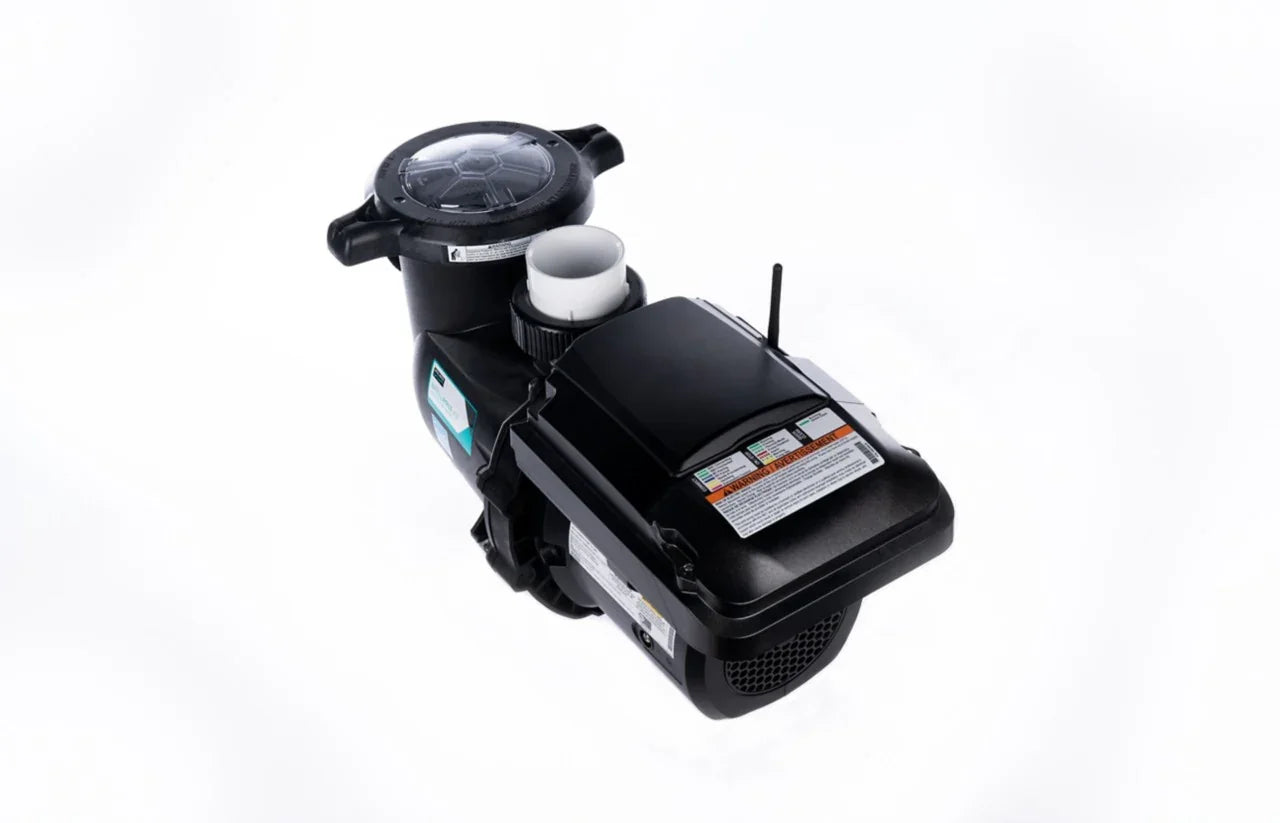

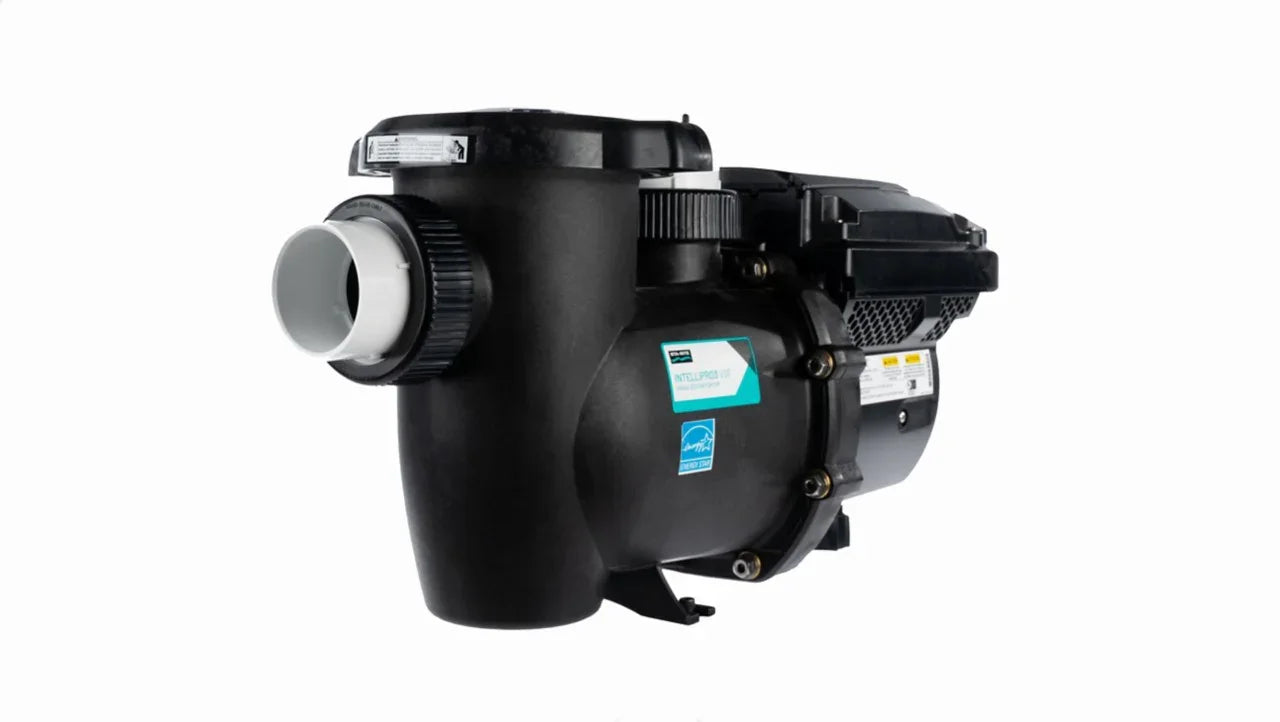

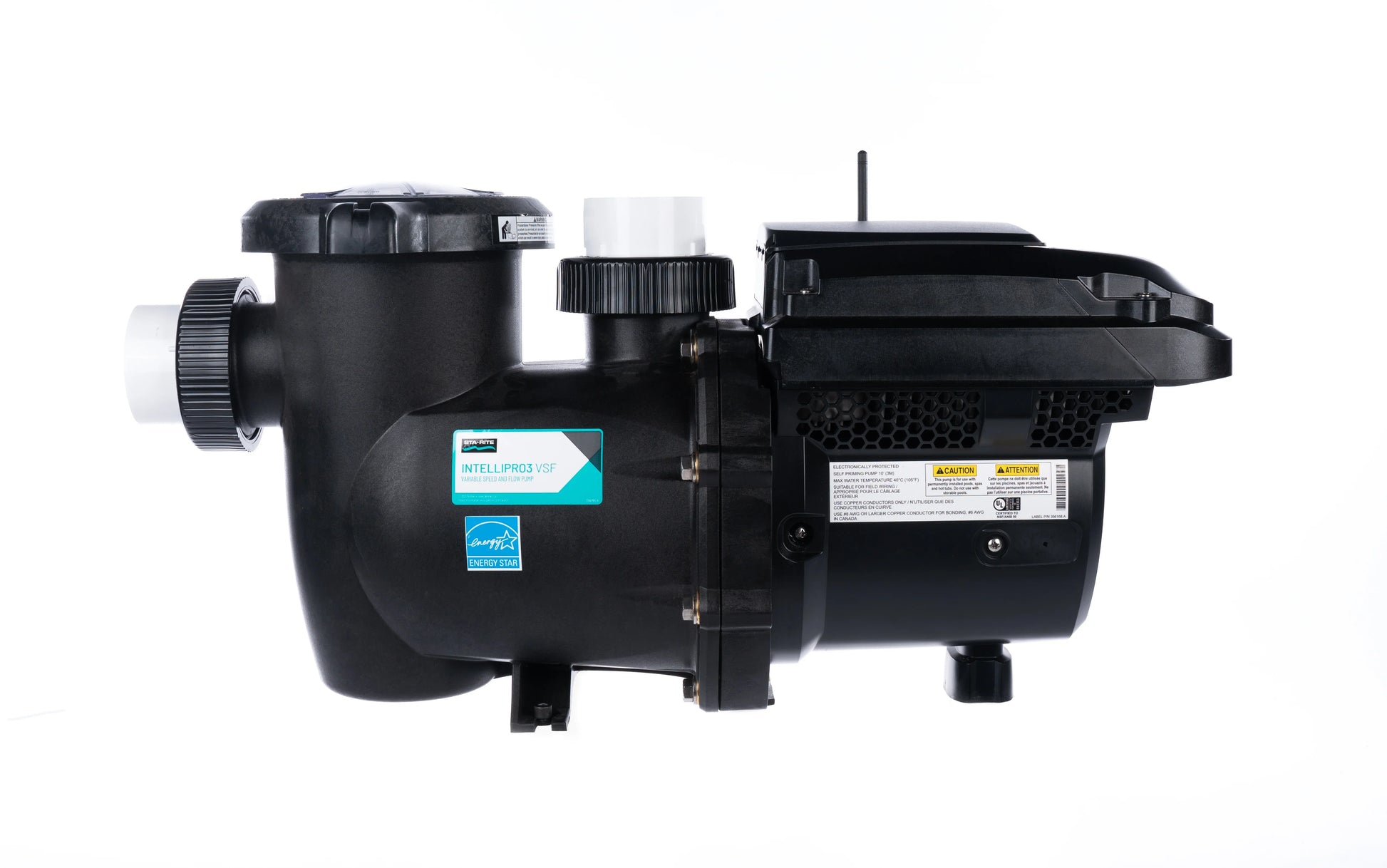

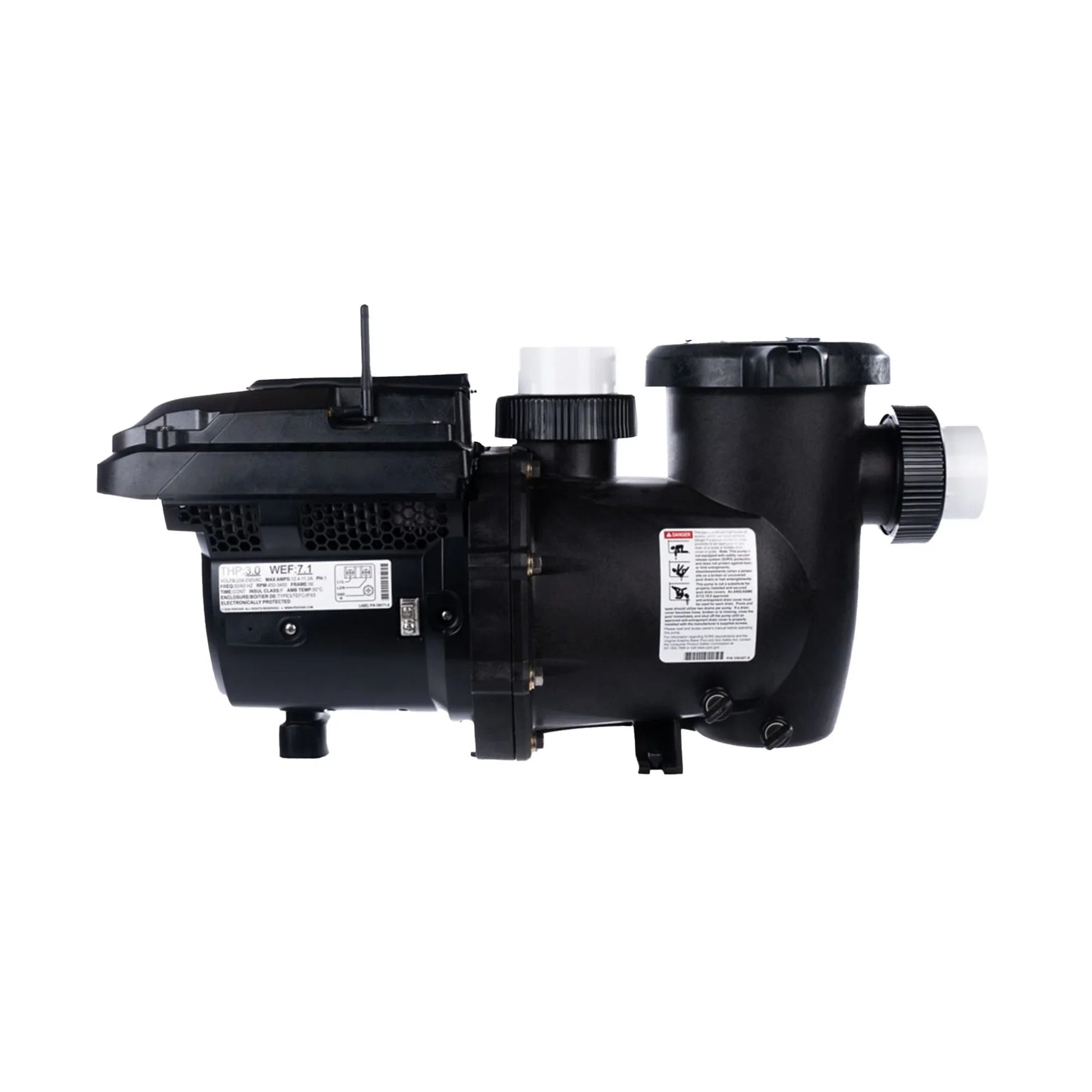

In brief: 3 HP Sta-Rite IntelliPro3 VSF variable-speed pump, 450 to 3450 RPM, 20 to 140 GPM flow rate, 208-230 V single-phase power supply. DOE compliant. Pentair part number 013075, without relay board or touchscreen display.
The same mechanics as the IntelliFlo3, under the Sta-Rite brand
IntelliPro3 is the Sta-Rite designation for Pentair's IntelliFlo3 platform. Both pumps share the same installation guide, speed range, and flow rate. The difference lies in the brand and the available configurations.
Model 013075 is the base version: variable-speed motor, connectivity included, but without a relay board or touchscreen display. It is the logical choice when the pump is controlled by the app or an existing automation system, and no auxiliary equipment needs to be controlled by the pump itself.
Official Pentair specifications
| Part number |
013075 |
| Brand |
Sta-Rite (Pentair) |
| Horsepower |
3.0 HP |
| Speed range |
450 to 3450 RPM |
| Flow rate |
20 to 140 GPM |
| Power supply |
208-230 V, single-phase, 50/60 Hz |
| Amperage |
12.4 to 11.2 A |
| Connections |
2 in., 2.5 in., or 3 in. NPT unions |
| Weight |
55 lbs |
| WEF |
7.1 |
| Compliance |
DOE compliant |
| Connectivity |
Wi-Fi and Bluetooth, Pentair Pool app |
| Relay board |
Not included — Pentair accessory 356365Z |
| Touchscreen |
Not included — Pentair accessory 356348Z |
| Pentair warranty |
3-year parts and labor on professional installation |
Source: IntelliPro3 product page and IntelliFlo3 / IntelliPro3 VSF installation guide published by Pentair.
Choosing the right configuration
Pentair offers the IntelliPro3 in four part numbers, which differ only in their factory-installed options:
-
013075 — no relay board, no display
-
013076 — with relay board
-
013077 — with touchscreen display
-
013078 — with touchscreen display and relay board
If your installation needs to control a light, heater, or booster pump from the pump, you need the relay board, so choose the 013076 or 013078.
Frequently asked questions
What is the real difference between the IntelliPro3 and IntelliFlo3?
The brand and the part number. Pentair publishes a common installation guide for both lines, with the same speed ranges, flow rate, and amperage. The IntelliPro3 is sold under the Sta-Rite brand.
Can the display be added later?
Yes. The 356348Z touchscreen display and 356365Z relay board are Pentair accessories that can be installed on the pump.
Is 240 V required?
Yes. This model operates on 208-230 V single-phase. It cannot be connected to a 115 V circuit.
Installation on the North Shore
Piscines Geyser sells and installs Pentair and Sta-Rite pumps in Blainville and the Laurentians. Have your configuration and sizing verified before ordering.
