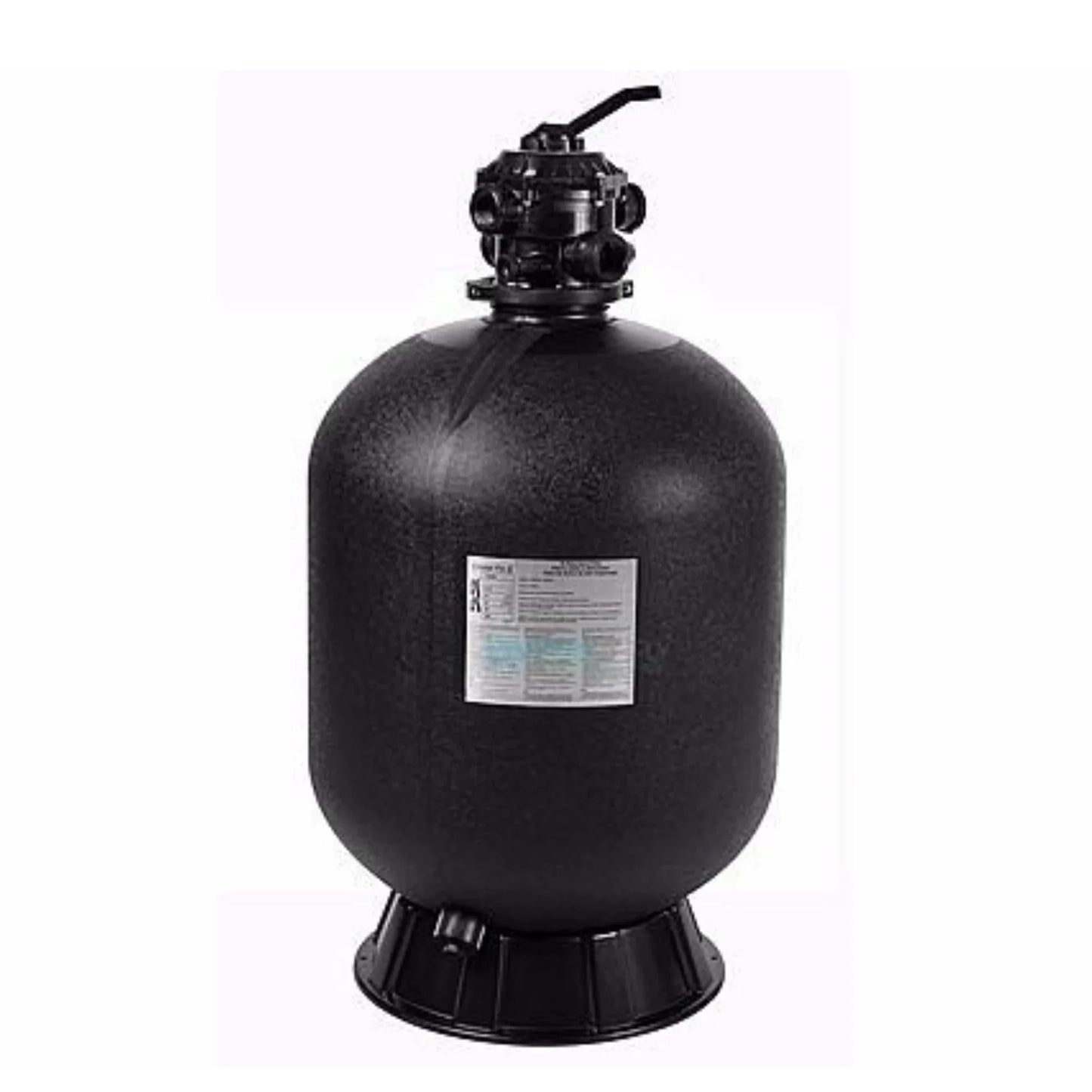

In brief: 19-inch Pentair Cristal-Flo II sand filter, model CF1119. Filter area of 1.9 sq. ft., 150 lb. sand capacity, 40 GPM flow rate, 1.5-inch 6-position multiport valve included. One-piece molded polyethylene tank. Pentair part number 145360.
The compact sand filter for a small pool
The Cristal-Flo II is Sta-Rite's legacy line of sand filters. It features a one-piece molded polyethylene tank, so there is no tank seam that could leak, and a top-mounted six-position multiport valve.
The 19-inch model is the most compact in the range offered here. It is suitable for pools with a pump flow rate of no more than 40 GPM.
Official Pentair specifications
| Part number |
145360 |
| Model |
CF1119 |
| Tank diameter |
19 in. |
| Filter area |
1.9 sq. ft. |
| Sand capacity |
150 lb. |
| Maximum flow rate |
40 GPM |
| Turnover capacity |
19,200 gal. in 8 h |
| Maximum operating pressure |
35 psi (20-in. models and smaller) |
| Maximum water temperature |
95 °F (35 °C) |
| Valve |
Included: 1.5-in. 6-position multiport |
| Tank |
One-piece molded polyethylene |
| Recommended media |
#20 silica sand, white quartz, 0.40 to 0.55 mm, uniformity coefficient ≤ 1.75 |
Source: Cristal-Flo II brochure and Cristal-Flo II product page published by Pentair.
Specification correction
This filter was long advertised with a 200 lb. sand capacity. Pentair's official brochure lists 150 lb. for the 19-inch CF1119. No 200 lb. capacity appears in the Cristal-Flo II line, which is available in 100, 150, 250, 300, and 350 lb. capacities, depending on diameter. We have corrected this information.
Regarding unions: Pentair does not publicly document which part numbers are supplied with or without unions. The union kit is sold separately under part number 150119 for a 1.5-inch valve. Check with us before ordering if your installation requires unions.
Frequently asked questions
What sand should I buy?
#20 silica sand in white quartz, with a particle size of 0.40 to 0.55 mm and a uniformity coefficient of 1.75 or less. Construction or play sand does not have the required particle size and lets fine particles pass through.
Which pump is suitable for this filter?
A pump with a flow rate no greater than 40 GPM in filtration mode. A pump that is too powerful for an undersized filter pushes water through the sand bed too quickly: filtration becomes ineffective and pressure rises.
How long does the sand last?
Five to seven years in residential use in Quebec. The most reliable sign is a filter that no longer returns to its starting pressure after backwashing.
Cristal-Flo II or Sand Dollar?
The two lines share the same blow-molded tank platform and several common parts: plumbing assemblies, clamp 152165, and pressure gauge 190059. They differ mainly in original branding and the sizes offered.
Installation and service on the North Shore
Piscines Geyser sells, installs, and services Pentair filters in Blainville and throughout the Laurentians. We supply silica sand with the correct particle size.
