You installed a variable-speed pump, but aren’t seeing the savings on your bill?
An efficient pump pushes against the resistance in the system. If the filter and its valve are 1½ in. while the pump could operate with 2 in. plumbing, some of the performance is lost to friction before the water even reaches the pool.

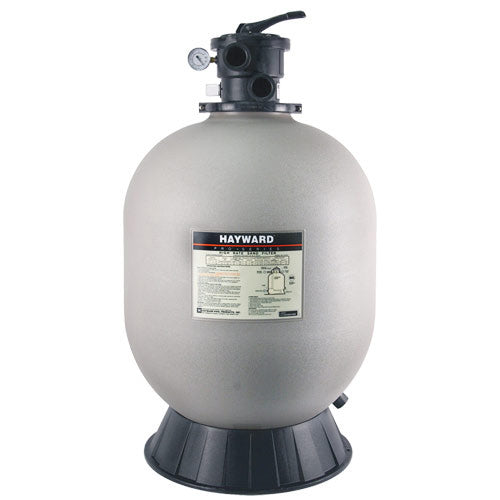

The Hayward ProSeries 24 in. with 2 in. connections eliminates this bottleneck. Corrosion-resistant polymeric resin tank, 2 in. VariFlo multiport valve included, and a rated flow of 62 GPM.
Specifications
- Hayward part number: S244T2C (Open Line channel, authorized online sales)
- 24 in. polymeric resin tank
- Filter area: 3.14 sq. ft.
- Sand capacity: 300 lb
- Residential rated flow: 62 GPM
- Turnover in 8 hours: 29,760 gallons
- Maximum operating pressure: 50 psi
- Dimensions: 42 in. high, 24.5 x 24.5 in. footprint
- Required side clearance: 18 in.
- 2 in. VariFlo multiport valve included, top mount
- Weight: 46 lb
- Parts warranty: 1 year
1½ in. or 2 in.
Choose the 2 in. model if your plumbing is already 2 in. or if you have a properly sized variable-speed pump. For an installation with 1½ in. plumbing throughout, the S244TC costs less for the same filter area.
Frequently asked questions
How much sand does it need?
300 lb, or six 50 lb bags. Sand is not included.
What size pool is it for?
With a turnover of 29,760 gallons in 8 hours, it handles most residential in-ground pools. Give us your exact volume and we’ll confirm.
Does 2 in. really make a difference?
Not much with a modest single-speed pump. Yes with a variable-speed pump that needs to stay efficient at low speeds.
