24V-DC Plug-in Pool Base CCEI – Watertight Induction Socket

CCEI Plug in Pool Base – 24V-DC Induction Waterproof Socket

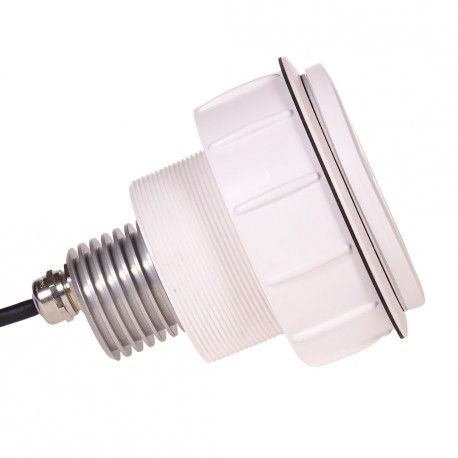

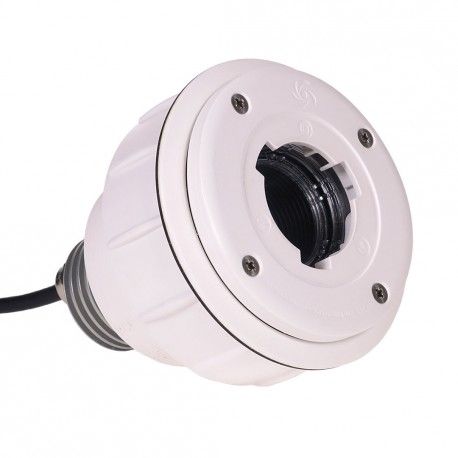

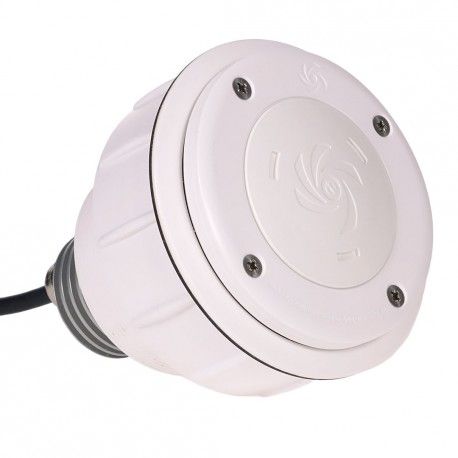

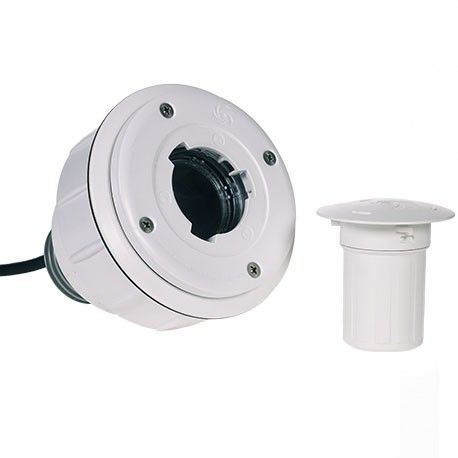

CCEI's patented Plug-in-Pool process (No. 1260746) operates on the principle of wireless electrical energy transmission via induction. The system comprises two distinct parts: the waterproof base, housed in the pool wall, and the male plug, attached to the compatible device. The plug fits into the recessed base and locks into place with a bayonet fitting.

✅ Features

• Power: 52 W
• Power supply: 24 V DC
• RC+ compatible
• Compatible with fiberglass, liner, and concrete pools
• Winterizing plug included
• Contactless induction transmission, with no electrical connection points in the water

🔌 The principle of induction

Induction creates a current from an electromagnet: a copper wire supplied with alternating current and wrapped around a metal bar generates a magnetic field. When a compatible metal is in this field, induced currents appear in it — energy is thus transmitted without any direct electrical contact, for optimal safety and waterproofing.

📏 Two cable lengths available

Choose the version suited to your installation: 50 ft cable (PF10R24C/50) or 100 ft cable (PF10R24C/100). Both versions are supplied with the winterizing plug.
