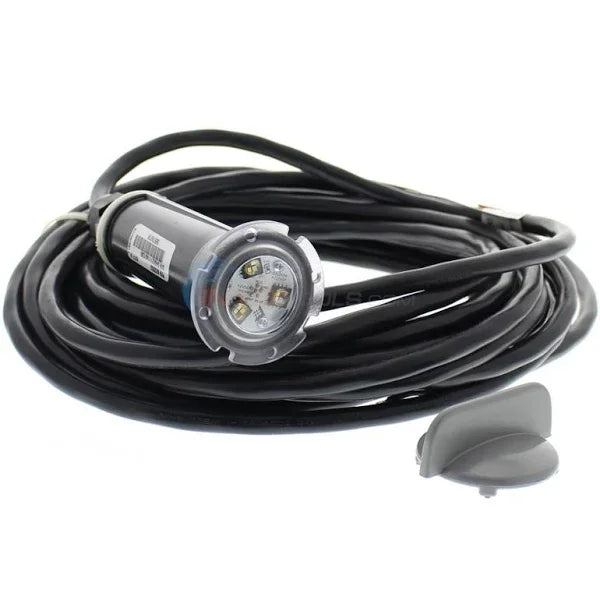

At a glance: Pentair GloBrite color-changing LED light, 12 V, 15 W maximum, 100-foot cord. Five fixed colors and seven light shows. cULus listed, minimum installation depth of 4 inches underwater. Pentair part number 602055.
The long-cord model in the GloBrite lineup
In many installations, the light itself isn't the problem—the distance is. A pool light cord can't be extended with a submerged splice: it must run in one continuous piece from the niche to the junction box.
The 602055 is the 100-foot cord model, suited to pools far from the panel or where the conduit takes a long detour.
In terms of performance, it's identical to the other color GloBrite models: 15 W, five fixed colors, seven light shows, and the luminous equivalent of a 190 W incandescent bulb, according to Pentair.
Official Pentair specifications
| Part number |
602055 |
| Cord length |
100 ft |
| Voltage |
12 VAC, 50/60 Hz |
| Power |
15 W maximum |
| Fixed colors |
5: blue, green, red, white, and magenta |
| Light shows |
7: SAm, Party, Romance, Caribbean, American, California Sunset, and Royal |
| Minimum depth |
4 in. underwater (U.S.) · maximum 600 mm to the center of the lens (Canada) |
| Maximum salinity |
6000 ppm |
| Listing |
cULus |
| Pentair warranty |
1 year |
Source: Pentair's GloBrite Color Changing LED product page, color GloBrite manual, and GloBrite brochure.
About lumens
Pentair does not publish lumen values for its pool lights, so we don't list any. The manufacturer's only official equivalent is 15 W of LED output for the effect of a 190 W incandescent bulb.
The color GloBrite family
| 602053 |
30 ft cord |
| 602054 |
50 ft cord |
| 602055 |
100 ft cord |
| 602056 |
150 ft cord |
Frequently asked questions
Is 100 feet too long?
No. The excess cord is coiled in the junction box or conduit, depending on the installation method. It's always better to have too much cord than not enough: a cord that's too short means having to redo the installation.
Which niche should I use?
A GloBrite niche. For vinyl, use the 620039, which comes with white, blue, and gray rings. A gunite niche (620040) and fiberglass niches are also available.
Is it compatible with a saltwater pool?
Yes, up to 6000 ppm according to Pentair, well above the 3000 to 4500 ppm in a residential salt system.
Can multiple lights be synchronized?
Yes, with the Pentair Color Sync Controller 618031, which controls up to 300 W of color LED lights on the same circuit and allows schedules to be programmed using the Pentair Pool app.
